Continuous Freezer A2 Series
Tetra Pak® ice cream freezers

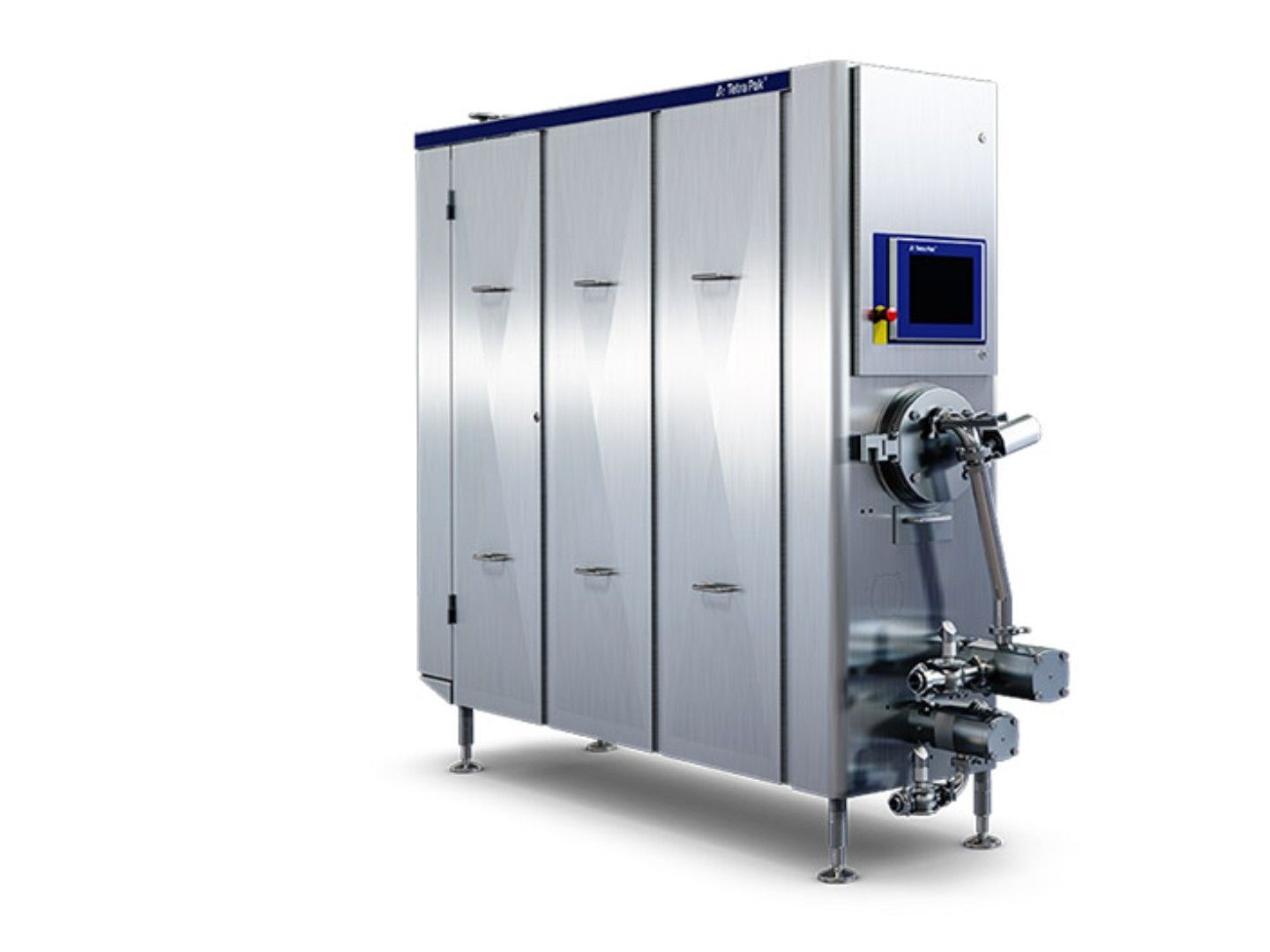

Tetra Pak® Continuous Freezer A2 Series
The Tetra Pak® Continuous Freezer A2 Series is a family of continuous freezers that freeze, mix, whip and aerate ice cream mix in one continuous process. The units are connected to a central refrigeration plant and come in five sizes, so the continuous freezer A2 series fits anything from medium-sized lines to high-volume ice cream production.
Highly uniform product with a standard deviation below 0.7%
Patented start-up procedure that limits start-up waste to about half a cylinder
Durable, service-friendly components and energy-efficient IE3 and IE4 motors
A rotary pump feeds a controlled flow of mix together with a metered amount of air into the freezing cylinder. Refrigerant surrounding the cylinder freezes the mix while the dasher and beater work the air in, and stainless steel scraper blades keep the cylinder wall clear. A second pump then sends the ice cream on to filling or extrusion. The patented cylinder design with a ribbed coolant channel transfers about 10% more heat than earlier models, and a mass flow meter controls the air intake for overruns of up to 140%.
Applications: Ice cream, coffee and other food products that are frozen and aerated continuously.
Capacity: CF 500 with 55–550 l/h, CF 1000 with 110–1,100 l/h, CF 2000 with 250–2,500 l/h, CF 3000 with 320–3,200 l/h and CF 4000 with 450–4,500 l/h.
Options: Multiple outlet pumps for up to four lanes per freezer, pull-out dasher tray, cooling valves without pressure drop, line integration package, Low Temperature kit and a circumferential piston pump for products with seeds and small particles.
- Rotary pumps cleaned during the CIP cycle
- Mass flow meter for up to 140% overrun
- Touch-screen panel with Tetra PlantMaster connectivity
- 55–4,500 l/h across five models
- below 0.7% standard deviation
- 1.72 m² footprint (CF 2000)
Built for long production runs: The hygienic hard-metal shaft seal keeps its spring outside the product zone and has a recommended replacement interval of 3,000 operating hours, and the compact motor and pulley arrangement lets several freezers stand side by side.
With five capacity sizes and precise overrun control, the Tetra Pak® Continuous Freezer A2 Series delivers consistent texture at a low cost per liter. Contact us today to learn more.
Looking for a self-contained freezer with its own refrigeration system? Discover the Tetra Pak® Continuous Freezer S1500 A2
