Homogenizer 30G and 25G

Tetra Pak^® homogenizers

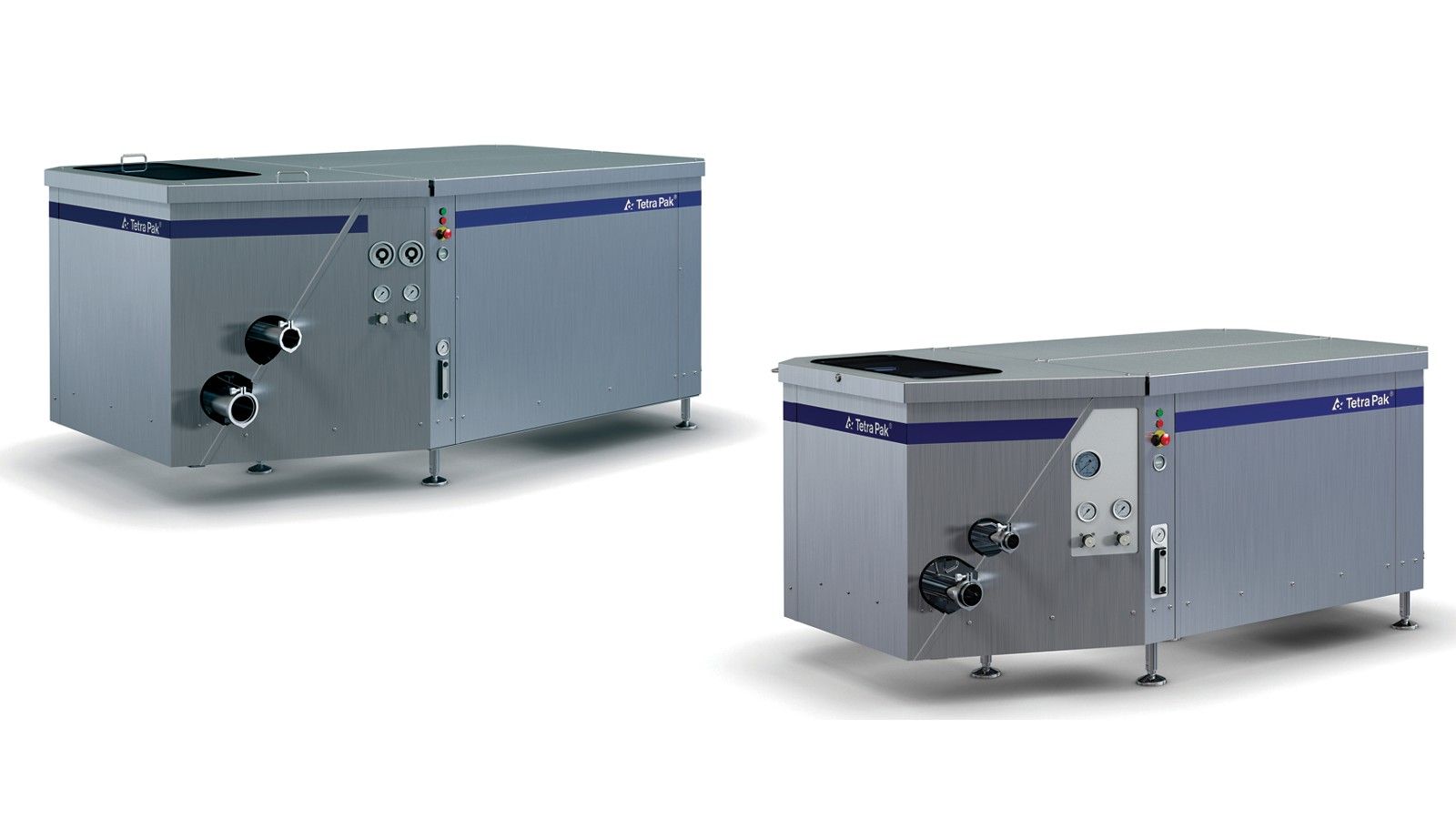

Tetra Pak^® Homogenizer 30G and 25G

The Tetra Pak^® Homogenizer 30G and 25G are homogenizers, or high-pressure pumps, for liquid food in the mid-range capacity segment. They are built for high uptime and low operating costs, and process low- to high-viscosity emulsions and suspensions, aseptic as well as non-aseptic, at up to 18,900 l/h.

A hydraulic system holds the homogenizing gap constant at its optimum, with more precision and stability than a pneumatic system. Forcer and seat are turnable, so these wear parts last twice as long at half the cost while the NIZO values are maintained. Because the machines run at a lower share of their maximum capacity, wear stays low and the production time between services can double or more. Large inspection windows allow checks without stopping production.

• Applications: Pasteurized, UHT and ESL milk, cream (including 40% and 70% cream), yoghurt, condensed milk, ice cream mix, beverages, fruit juices, concentrates, purées, tomato preparations, dressings, mayonnaise, sauces and gravies.

• Capacity: Up to 9,000 l/h with the Homogenizer 25G and up to 18,900 l/h with the Homogenizer 30G at 160 bar, homogenizing pressures of up to 400 bar at reduced capacity.

• Design: Horizontal 3-piston positive displacement pump with built-in HD 100 homogenizing device and one-piece forged stainless steel pump block, pushing seal design for aseptic and non-aseptic products, TD and mushroom valves for viscosities up to 2,000 cP, frequency converter for different capacities and working pressures, wear-resistant materials on wearing parts.

Built to last: The pump block comes with a 10-year warranty against cracks.

With high efficiency, low maintenance and spare-part costs and one machine for many products, the Tetra Pak^® Homogenizer 30G and 25G deliver a low cost per litre. Contact us today to learn more.
