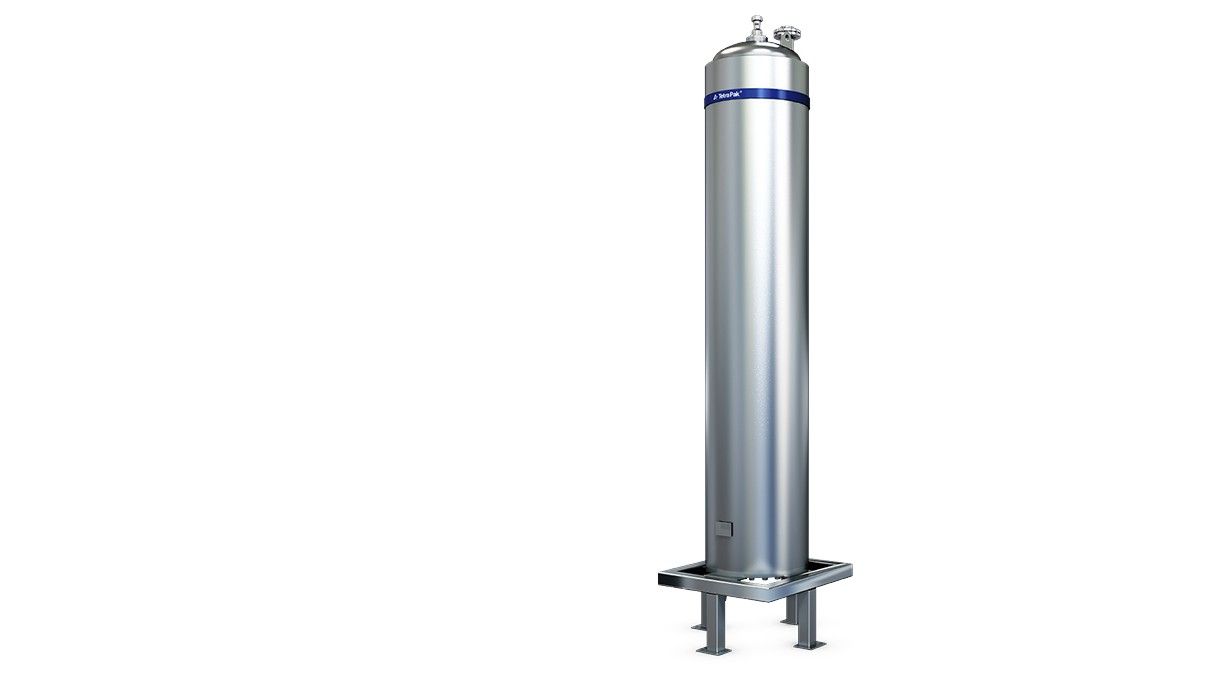

Tetra Pak® Coiled Heat Exchangers
Tetra Pak® coiled heat exchangers heat and cool low- to high-viscosity food products, from smooth sauces to products with pieces. The proven design is now also available as a stand-alone unit.
Gentle processing that keeps particles of up to 25 mm intact
Low total cost of ownership through low energy and maintenance costs
Food safety through hygienic design with no moving parts and few welds
The product flows through a single coil-shaped tube, 30 to 100 m long, while the medium flows around it in a vertical chamber. At high velocity the coil creates a secondary flow pattern, the Dean effect, which increases heat transfer efficiency and keeps heat transfer surfaces and system volumes small. With only one inlet and one outlet, the product is treated gently and particles stay intact. A floating end sealed with O-rings at the bottom flange absorbs thermal expansion, prevents the tube from cracking and makes maintenance easy.
Applications: Smooth, high-viscosity sauces and dairy desserts as well as chunky soups and jams with fruit pieces of up to 25 mm in diameter.
Pressure rating: Product pressure up to 300 bar and media pressure up to 10 bar, enabling high capacities even with highly viscous products.
Design: Coiled mono-tube with product-contact surfaces in duplex stainless steel (EN 1.4462), EPDM seals and insulation as standard; the unit size and number of units are selected for the required capacity and heat transfer area.
- Coiled mono-tube with one inlet and one outlet
- Floating end against thermal stress
- No moving parts
- up to 300 bar product pressure
- particles up to 25 mm
- 30 to 100 m tube length
Energy savings in series: When several units are installed in series, connecting their media sides in water loops can cut heating and cooling energy by up to 50%.
With high capacity for viscous products and gentle treatment of particles, the Tetra Pak® coiled heat exchanger lowers the cost per litre without compromising product quality. Contact us today to learn more.
Processing sticky products that need continuous scraping? Discover Contherm® scraped-surface heat exchangers
What are the benefits of working with SCHNEIDER INDUSTRIES for Tetra Pak® components?
SCHNEIDER INDUSTRIES provides direct access to high-quality Tetra Pak® components and process solutions. Through our partnership, you benefit from innovative technology, short delivery times, and a wide portfolio of spare parts and systems tailored to your needs. Additionally, our experienced team offers comprehensive support and consultation.
Can SCHNEIDER INDUSTRIES supply spare parts for existing Tetra Pak® systems?
Yes, we offer a wide range of original Tetra Pak® spare parts for existing systems. This ensures optimal functionality of your machines and quick, reliable maintenance.
See our Spare Parts
How does SCHNEIDER INDUSTRIES support the implementation of new Tetra Pak® components?
Our team assists you from selecting the right components to integrating them into your production line. We provide technical consultation, installation, and training to ensure your systems operate efficiently and sustainably.
Can Tetra Pak® components be customized to specific production requirements?
Yes, Tetra Pak® components can be tailored to meet your production's specific needs. SCHNEIDER INDUSTRIES offers detailed consultation to ensure the chosen components perfectly fit your processes, maximizing efficiency and product quality.
